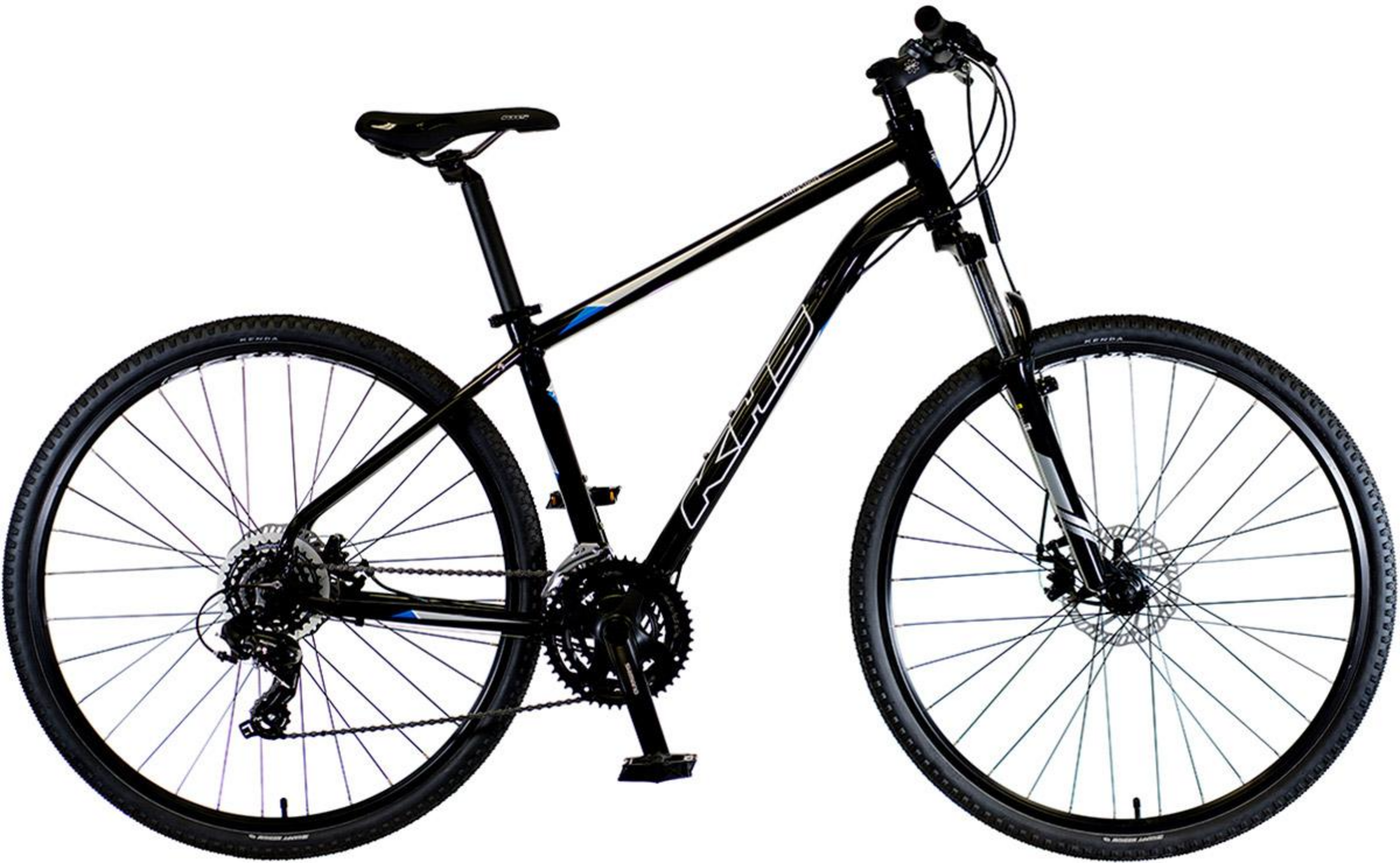

KHS Ultrasport 1.0

KHS Ultrasport 1.0
  • Color: Matte Blue
  • Color: Black
Size: Select size
Wheel Size: 700c
Please select options Unavailable


- 21 Speed
- Shimano drivetrain
- Cable disc brakes
- Internal cable routing
- Triple ring crank


Pedals Resin ATB Platform w/Boron Axle
Fork Zoom 565D, 80mm Travel
Hubs KT Aluminum Disc w/CNC Rotor Flange, QR
Rims Aluminum, 700c x 32H, Double wall
Stem KHS Aluminum Threadless 4-bolt, 6-degree, 31.8mm, S:60mm, M-L:75mm, XL-XXL:90mm, Ladies: S:60mm, M:75mm
Chain KMC Z8.3
Frame 6061 Aluminum with C/S Disc Mount, w/Replaceable Derailleur Hanger, Internal Cable
Tires Kenda Happy Medium, 700 x 40c, 30TPI
Brakes Radius Cable Disc BR-CX7, 160mm Rotors w/ABS System
Saddle KHS Sport
Spokes 14G Black, 32x32
Headset Threadless 1-1/8”, ZeroStack
Crankset Shimano FC-TY-301, 48/38/28T, S: 170mm, M-XXL: 175mm
Seatpost KHS Aluminum Micro-Adjust, 31.6x350mm
Shifters Shimano ST-EF500
Handlebars Aluminum, 31.8mm, 680x20mm, Ladies: 660x20mm
Tape/Grips KHS Sport, Dual Compound
Brake Levers Shimano ST-EF500
Bottom Bracket FSA Cartridge Bearing, 122.5mm
Rear Derailleur Shimano RD-TY300
Front Derailleur Shimano FD-TY601, 34.9mm
Cassette/Freewheel Shimano Cassette, CS-HG20-7, 12-32T, 7-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Blue / Small / 700c 756928949777 932039001
Matte Blue / Medium / 700c 756928949791 932039003
Black / Small / 700c 756928949760 932039000
Black / Medium / 700c 756928949784 932039002
Black / Large / 700c 756928949807 932039004
Black / X-Large / 700c 756928949821 932039006
Black / XX-Large / 700c 756928949838 932039007
